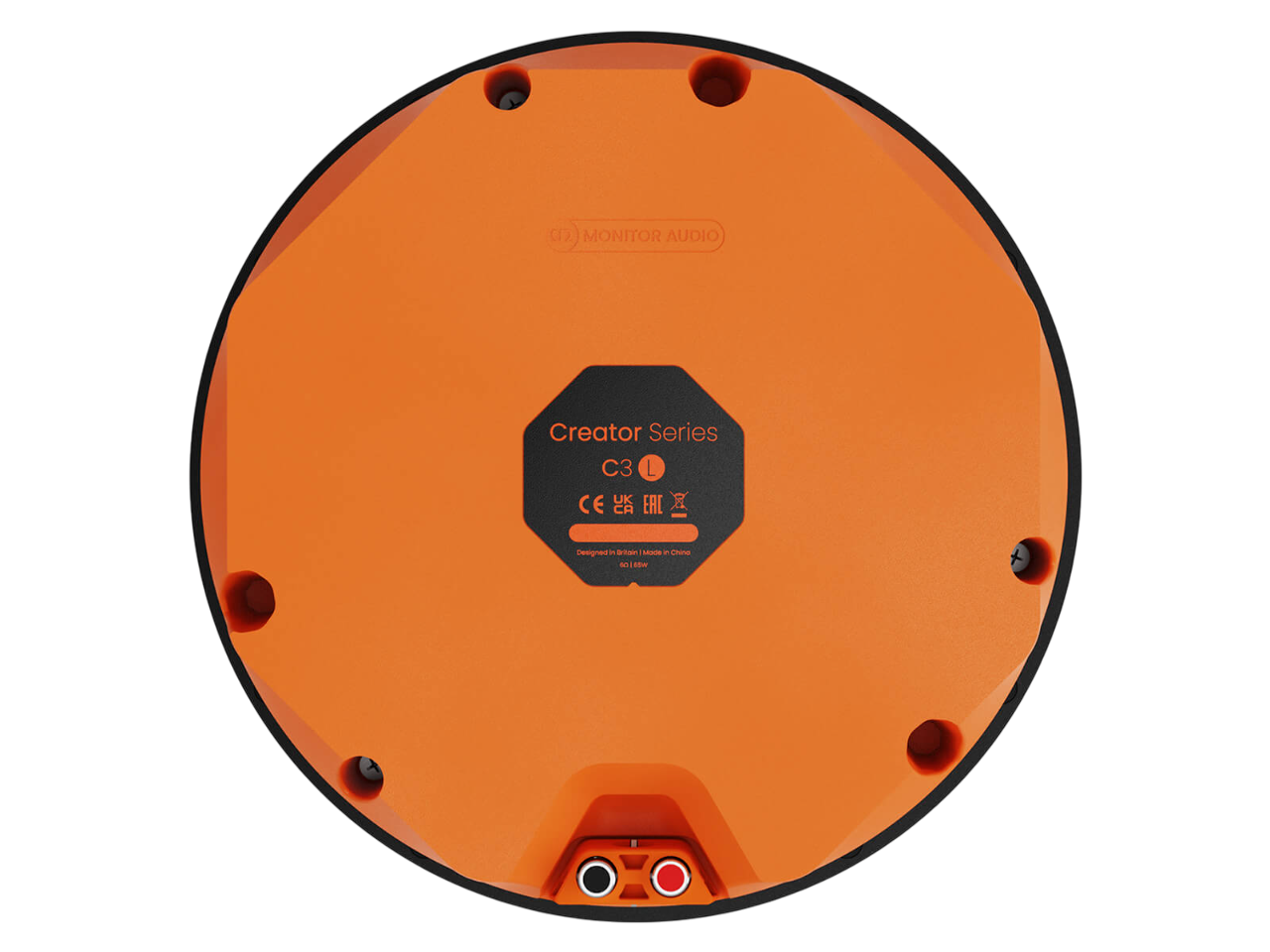

Monitor Audio - C3L In-Ceiling Speaker
This high-performance, large Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
Price is for a Single Unit
This high-performance, large Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
Price is for a Single Unit
This high-performance, large Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
Price is for a Single Unit
British High-Fidelity Architectural Sound Redefined
This high-performance, large Tier 3 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where pristine sound quality is desired. It is a three-way model featuring the very latest acoustic technologies from Monitor Audio.
This really is the last word in installed performance, featuring an RDT III bass driver, IDC II midrange driver, and IDC II tweeter with UD Waveguide II. This high-end combination ensures levels of acoustic transparency and detail found in Monitor Audio’s premium loudspeaker ranges, where much of his acoustic technology was developed. It has a cutout diameter of 212 mm and uses the patented Quik-Link speaker cable connector, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable, and strong fitment.
Features at a glance:
Ideal for installations where high-performance acoustics are desired | Three-way design | Mid-frequency ‘mid-pod array’ | 1 x 1" IDC II tweeter with UD Waveguide II for lifelike sound | 1 x 9" RDT III bass driver | 1 x 4" IDC II midrange driver | Patented Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
-
System Format
3–Way
Channels
1
Frequency Response, Installed (-6dB)
45 Hz – 35 kHz
Nominal Impedance
6 ohm
Minimum Impedance (20Hz to 20kHz)
4.8 Ohm @ 2 kHz
Sensitivity (2.83Vrms@1m, Installed)
89 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
119 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
150 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
60 – 225 W
Drive Unit Complement
1 x 9" (229 mm) RDT III bass driver
1 x 4" (102 mm) IDC II midrange driver
1 x 1" (25 mm) IDC II tweeterCrossover Frequency
LF/MF: 700 Hz
MF/HF: 3.5 kHzMounting Depth
157 mm (63/16")
Cut-Out Hole Diameter
248 mm (93/4")
External Dimensions (Including Grille (H x W x D))
278 x 278 x 161 mm (1015/16 x 1015/16 x 65/16")
Weight (each)
5 kg (11 lb)
Pre-Construction Bracket
CL-B
Cabinet Finish
Matte black & Orange & Green
Sold As
Single Unit with CL-Round Grille (white)
Corner Switch
On/Off
HF Switch
- /0/ +
MF Switch
- /0/ +
Warranty
Lifetime
